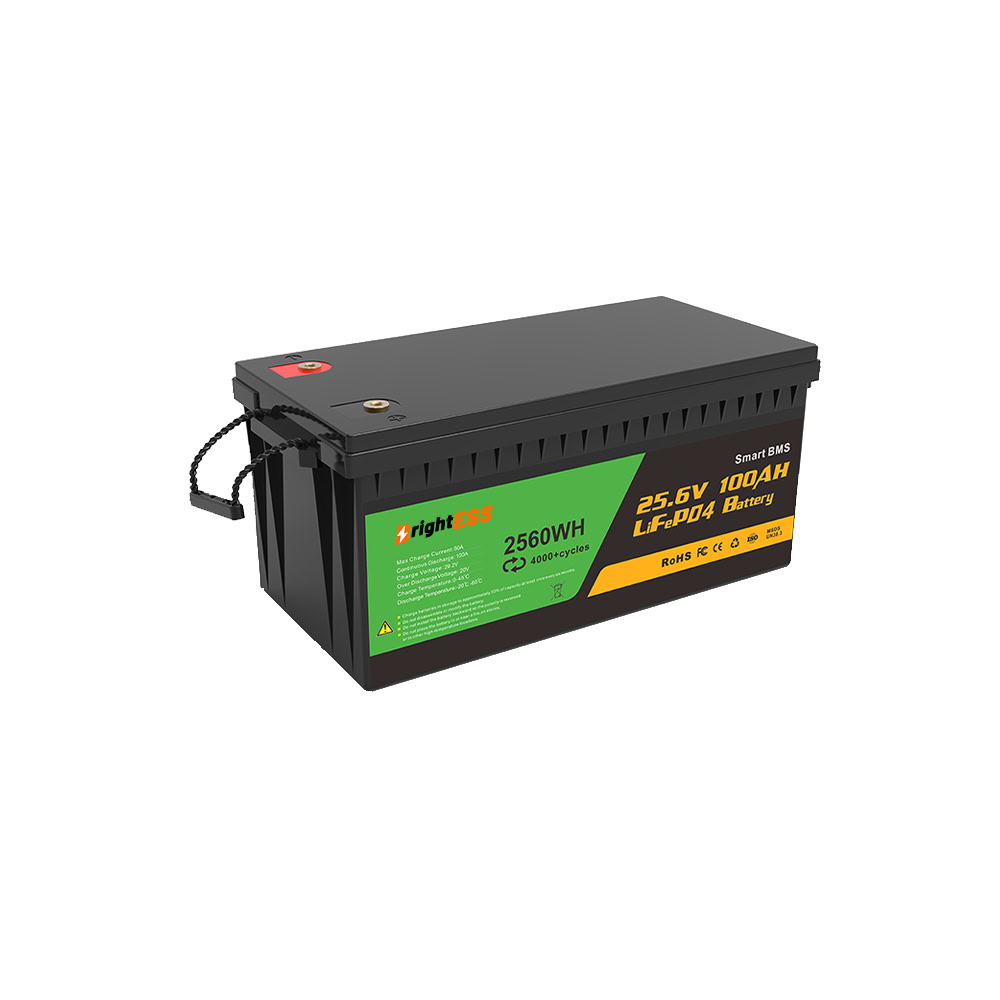

High-capacity BrightESS solar energy storage battery for renewable energy projects.

LeadOut
12.8|25.6V

Price range: $88.00 through $638.00

Easy replacement, install in minutes

Lower cost, longer life, lasting value

No more lead acid, all in lithium battery

More reliable and safer with smart BMS

Compatible with various inverter brands

Voltage

Capacity

Clear

SKU: LeadOut Battery Categories: Batteries, Energy Storage Systems, Home Energy Storage Systems, LeadOut Battery, Lithium Batteries Brand: BrightESS

Description

Parameter

Model	SCLFP-12.8V-30	SCLFP-12.8V-50		SCLFP-12.8V-100E	SCLFP-12.8V-100	SCLFP-12.8V-150
Nominal Voltage	12.8V	12.8V		12.8V	12.8V	12.8V
Rated Capacity	384Wh (30Ah)	640Wh (50Ah)		1280Wh (100Ah)	1280Wh (100Ah)	1920Wh (150Ah)
Battery Type	LiFePO4	LiFePO4		LiFePO4	LiFePO4	LiFePO4
Cell Combination Structure	4S2P	4S1P		4S4P	4S1P	4S1P
Discharge Current	30A	50A		80A	100A	100A
Discharge End Voltage	10V	10V		10V	10V	10V
Standard Charge Voltage	14.6V	14.6V		14.6V	14.6V	14.6V
Float Voltage	13.8V	13.8V		13.8V	13.8V	13.8V
Standard Charge Current	15A	25A		40A	50A	50A
Standard Discharge Current	15A	25A		40A	50A	50A
Max Continuous Charge Current	30A	50A		80A	100A	100A
Max Continuous Discharge Current	30A	50A		80A	100A	100A
Peak Current	33A, 10Sec	55A, 10Sec		110A, 10Sec	110A, 10Sec	110A, 10Sec
Charge Operating Temperature	0℃-45℃	0℃-45℃		0℃-45℃	0℃-45℃	0℃-45℃
Discharge Operating Temperature	-10℃-60℃	-10℃-60℃		-10℃-60℃	-10℃-60℃	-10℃-60℃
Dimension	22.39.517.5cm	22.813.820.8cm		3317.221.5cm	3317.221.5cm	52.22421.8cm

Model	SCLFP-12.8V-200	SCLFP-12.8V-300		SCLFP-25.6V-100	SCLFP-25.6V-200
Nominal Voltage	12.8V	12.8V		25.6V	25.6V
Rated Capacity	2560Wh (200Ah)	3840Wh (300Ah)		2560Wh (100Ah)	5120Wh (200Ah)
Battery Type	LiFePO4	LiFePO4		LiFePO4	LiFePO4
Cell Combination Structure	4S2P	4S1P		8S1P	8S1P
Discharge Current	100A	200A		100A	100A
Discharge End Voltage	10V	10V		20V	20V
Standard Charge Voltage	14.6V	14.6V		29.2V	29.2V
Float Voltage	13.8V	13.8V		27.6V	27.6V
Standard Charge Current	50A	100A		50A	50A
Standard Discharge Current	50A	100A		50A	50A
Max Continuous Charge Current	100A	200A		100A	100A
Max Continuous Discharge Current	100A	200A		100A	100A
Peak Current	110A, 10Sec	220A, 10Sec		110A, 10Sec	110A, 10Sec
Charge Operating Temperature	0℃-45℃	0℃-45℃		0℃-45℃	0℃-45℃
Discharge Operating Temperature	-10℃-60℃	-10℃-60℃		-10℃-60℃	-10℃-60℃
Dimension	52.22421.8cm	52.226.822cm		52.22421.8cm	52.22421.8cm

Additional information

Voltage	12.8V, 25.6V
Capacity	30Ah, 50Ah, 100Ah, 150Ah, 200Ah, 300Ah
