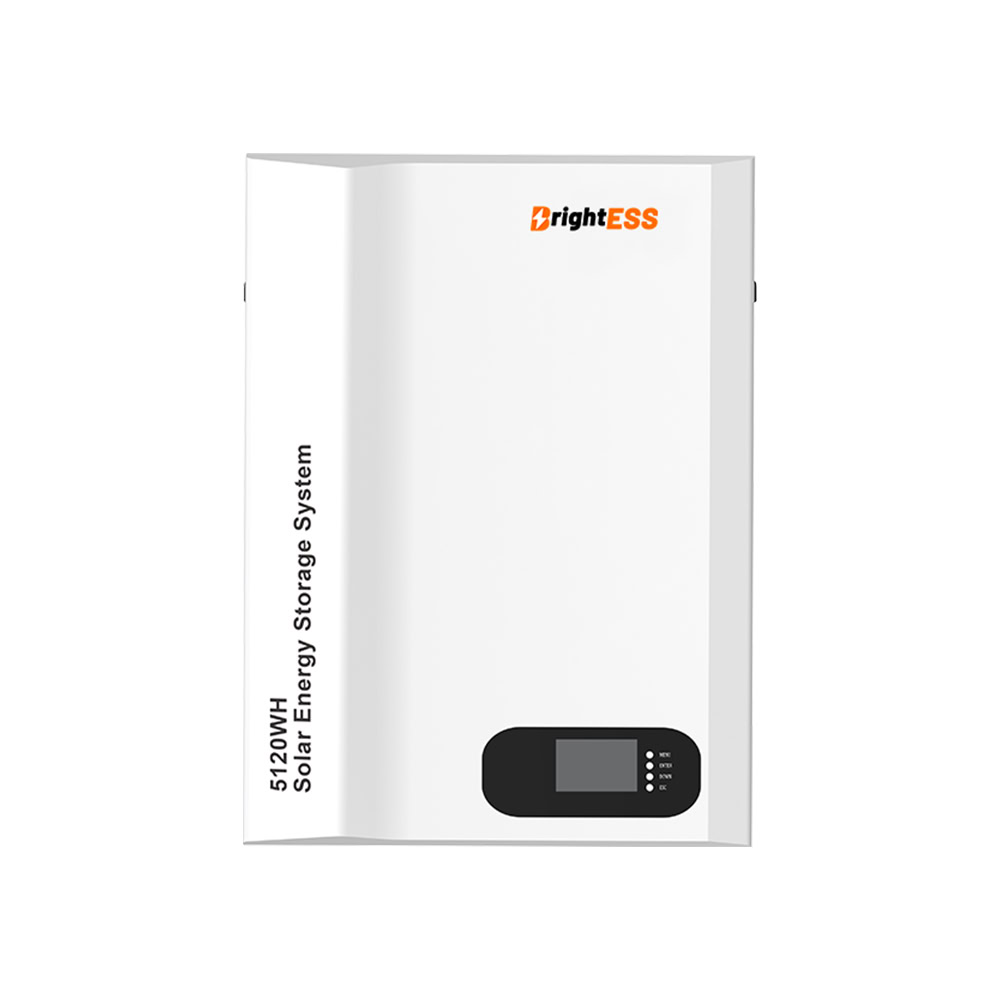

High-capacity BrightESS solar energy storage system, reliable power backup for solar energy projects.

WallMate
2.5|5|10kWh

Price range: $548.00 through $1,578.00

Wall mounted, saving space

6000+ cycles, not just long, but safe

More reliable and safer with smart BMS

Compatible with various inverter brands

Up to 15 batteries in parallel, free expansion

Voltage

Capacity

Clear

SKU: WallMate ESS Categories: Energy Storage Systems, Home Energy Storage Systems, WallMate ESS Brand: BrightESS

Description

Parameter

Battery	Model	SCAE-A-51.2- 100	SCAE-A-51.2-200- (BMS 100A)		SCAE-A-51.2-200- (BMS 200A)	SCAE-A-25.6- 100	SCAE-A-25.6- 200
	Rated Capacity	5120Wh (100Ah)	10240Wh (200Ah)		10240Wh (200Ah)	2560Wh (100Ah)	5120Wh (200Ah)
	Nominal Voltage	51.2V				25.6V
	Discharge Voltage Range	43.2V-58.4V				21.6V-29.2V
	Standard Charge Current	50A	50A		100A	50A	50A
	Max Charge Current	100A	100A		200A	100A	100A
	Max Discharge Current	100A	100A		200A	100A	100A
	Depth of Discharging	95%
	Communication Interface	CAN / RS485
	Cycle Life	≥6000, 25±2℃, 0.5C, EOL80%
	Working Temperature	Charge: 0℃-50℃; Discharge: -10℃-60℃
	Storage Temperature	-10℃-60℃
	Dimension	40.518.558cm	43.52863cm		43.52863cm	3619.542cm	40.518.558cm

Additional information

Voltage	25.6V, 51.2V
Capacity	2.5kWh, 5kWh, 10kWh (BMS 100A), 10kWh (BMS 200A)
